WhisperPower – M-GV6 PICCOLO 6 KVA / 6 kW – 230V /

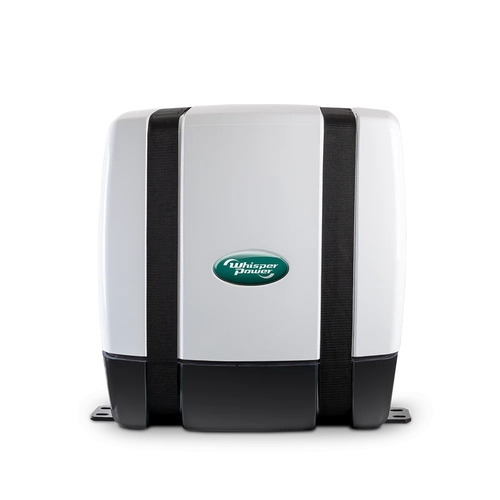

M-GV6 PICCOLO 6 KVA / 6 kW – 230V / 50Hz K Schifffahrt Meet the Piccolo 6

The WhisperPower Genverter© Piccolo 6 is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as a washing machine, small air conditioning system, electrical cooking hob and battery charging devices.

Main specifications: 1 Phase | 230 VAC | 50 Hz

Intermittent Power kW at 25°C (77°F)

6 kW

Continuous Power kVA at 25°C (77°F)

6 kVA

Nominal voltage / frequency

1 Phase | 230 VAC | 50 Hz

Rpm range

2400 .. 3000 rpm, adjustable

Engine

WhisperPower Kubota Z482-C

Emission class

Stage V certified / EPA / Tier 4

Noise level

51 dB(A) at 7 m, 60 dB(A) at 1 m

Length x width x height, mm (in.)

520 x 500 x 545 (20.5 x 19.7 x 21.5)

Dry weight, (cabinet + PMG), kg (lb.)

145 + 7.6 (319.7 + 16.8)145 + 7.6 (319.7 + 16.8)

Main specifications: 1 Phase | 120 VAC | 60 Hz

Intermittent Power kW at 25°C (77°F)

6 kW

Continuous Power kVA at 25°C (77°F)

6 kVA

Nominal voltage / frequency

1 Phase | 120 VAC | 60 Hz

Rpm range

2400 .. 3000 rpm, adjustable

Engine

WhisperPower Kubota Z482-C

Emission class

Stage V certified / EPA / Tier 4

Noise level

51 dB(A) at 7 m, 60 dB(A) at 1 m

Length x width x height, mm (in.)

520 x 500 x 545 (20.5 x 19.7 x 21.5)

Dry weight, (cabinet + PMG), kg (lb.)

145 + 9.9 (319.7 + 21.8)

Technische Daten

Herstellerunterlagen

• Technisches Dokument (PDF)
• Technisches Dokument (PDF)
