WhisperPower – M-GV5 PICCOLO 4.4kVA / 3.5kW – 230V

M-GV5 PICCOLO 4.4kVA / 3.5kW – 230V / 50Hz Marine – Variable Geschwindigkeit The little power house

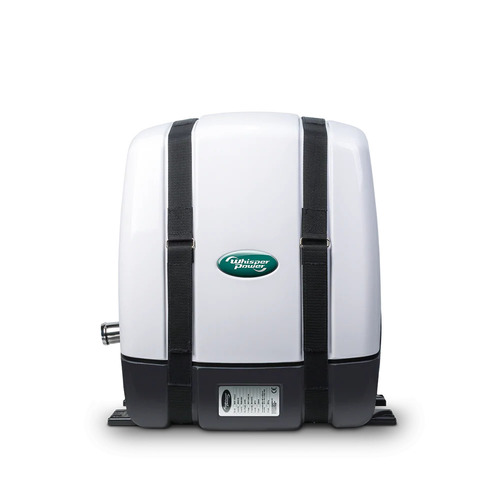

The WhisperPower Genverter© Piccolo 5 is the smallest, quietest and most powerful of its kind. Thanks to the electronic PMG inverter output, it delivers the ideal power quality for all your comfort equipment such as a washing machine, small air conditioning system, electrical cooking hob, battery chargers and inverter/charger combinations.

Unique engine

All Piccolo 5 models are fitted with a modern diesel engine designed by WhisperPower, entirely for the purpose of generating power the smooth way. The engine is cooled by a heat exchanger designed for indirect water-cooling. The circulation water pump is driven by a PTO (no belt). This WhisperPower engine operates between 2800 and 3600 rpm.

Main Specifications: 230 VAC | 50 Hz

Intermittent Power kW at 25°C (77°F)

3.5 kW

Continuous Power kVA at 25°C (77°F)

4.4 kVA

Nominal voltage / frequency

1 Phase | 230 VAC | 50 Hz

Rpm range

2800 .. 3600 rpm, adjustable or automatic

Engine

WhisperPower WP1

Noise level

54 dB(A) at 7 m, 65 dB(A) at 1m

Length x width x height (cabinet), mm (in.)

450 x 470 x 520 (17.7 x 18.5 x 20.5)

Dry weight (cabinet + PMG), kg (lb.)

68 + 7.6 (150 + 16.8)68 + 7.6 (150 + 16.8)
