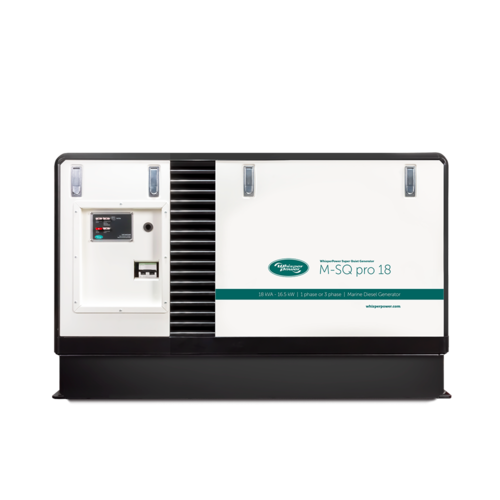

WhisperPower – M-SQ PRO 18 GENERATOR 18KVA /16.5kw
3-Phasen 230/400V / 50Hz – Marine Meet the M-SQ Pro 18, designed to last a lifetime! Every M-SQ (Super Quiet) Pro 18 WhisperPower diesel generator is designed for non-stop, 1500/1800 rpm operation under harsh circumstances. They are robust, silent, compact and extremely reliable. All M-SQ Pro 18 generators are made in the Netherlands and tested during a 2 hours running period in one of the most advanced generator production facilities in the world, before distributed on a world-wide base by dedicated, service orientated, distribution partners. Only the best 4 cylinder engines are applied: long lasting, reliable, silent engines, complying with Stage V (European standard). The engine is water-cooled and kept on a constant temperature via a heat exchanger. Main Specifications: 1 or 3 Phase | 50 Hz (Stage V certified) Intermittent Power kW at 25°C (77°F) 14.5 kW Continuous Power kVA at 25°C (77°F) 17.5 kVA Nominal voltage / frequency 1 Phase | 230 VAC | 50 Hz Nominal voltage / frequency 3 Phase | 230/400 VAC | 50 Hz Rpm range 1500 rpm Engine WhisperPower Kubota V2203 M BG – 4 cylinder Emission class EPA + Stage V certified Noise level 55 dB Length x width x height, mm (in.) 1220 x 718 x 754 (48 x 28.3 x 29.7) Dry weight, kg (lb.) 495 (1091)
Worauf es beim Generator ankommt
- Leistung, Spannung, Frequenz, Bauform und Steuerung passend zur Bordinstallation wählen.
- Kühlung, Abgasführung, Kraftstoffversorgung und Wartungszugang vor dem Einbau klären.
- Lieferumfang, Bedienpanel und elektrische Einbindung anhand der Herstellerunterlagen abstimmen.
Abgasführung, Kraftstoffversorgung, Kühlung und elektrische Einbindung nur fachgerecht planen und montieren.
Vor Arbeiten Anlage spannungsfrei schalten, gegen unbeabsichtigten Start sichern und Herstellerunterlagen beachten.
Dieser Artikel wird wegen Gewicht, Abmessungen oder Artikelart per Spedition versendet. Liefertermin und Versandkosten werden nach der Bestellung beziehungsweise nach Absprache bestätigt.
